Arcan Chocolate Decorating System UKZC-90

Overview The Arcan Dekor Makinesi is a versatile decorating machine designed to enhance the appearance and flavor of various confectionery products, such as biscuits, bars, cookies, and enrobed items. This machine is built for flexibility and ease of use, allowing users to apply a wide range of patterns, including angular designs, zigzags, and loops, with quick transitions between different patter

Fuji Paudal Twin Dome Extruder TDG-80A

Operation The wet mix, which is typically prepared in a high shear granulator, is metered into the feed hopper by feeder. Twin screws transport the wet mix to the extrusion zone where it is then wiped through a dome die (screen) to produce well formed, cylindrical extrudates of a controlled diameter. The extrudates break off by their own weight and are collected for the next processing step. Feat

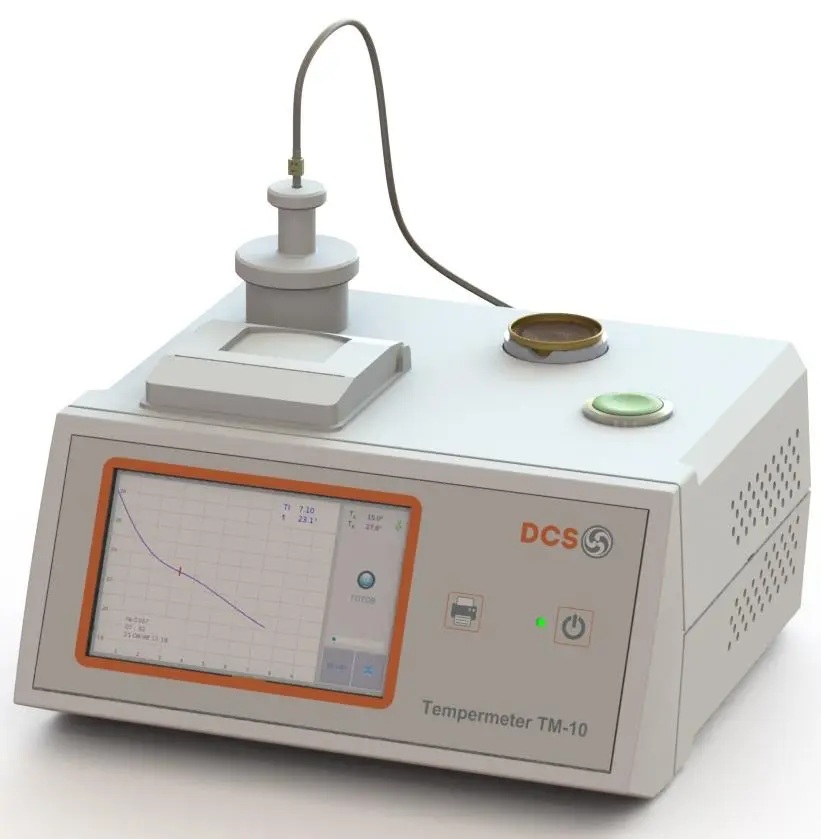

DCS Tempermeter TM-10

Main Features and Advantages: - Light and strong design. We are using an industrial enclosure and special forced plugs from German suppliers. - Easy start of measure. After placing the chocolate sample - just push a button. - High resolution colour sensor display of operator with real time indication. - Operator can adjust any parameters from display of Tempermeter and store it for different

Coating Pan

Stainless coating drum, comes with DOL Max ID: 670mm Inlet dia: 495mm Max depth: 650mm Electrics: 3ph, 415V, 50Hz Infeed height: 1080mm off ground

ORBIS ENGINEERING Cooling Tunnel

Cooling tunnel aperture: 455mm W x 100mm H Cooling tunnel length: 8,000mm Belt width: 415mm Working height: 965mm Electrics: 1ph, 240V, 50Hz. - Compressor Included refurbished. -New conveyor belt included. -Price includes refurbishment.

ERWEKA Lab Scale Coating Pan AR400S

The ERWEKA All-Purpose system is based on a powerful drive unit. The various attachments can be easily and quickly connected by means of a coupling. The ERWEKA coating pan is used for the development of coating tablets. The universal gear UG is required to attach the coating pan to the motor drive. This allows adjusting the angle of the pan and getting an optimum result from the coating process.

Copper Coating Pan

Control box Opening 575dia. x 850deep Capacity: 175L Usable volume: 850mm W x 850mm deep x 330 mm H (curved shaped) ~ 0.1767 m3 Motor: Hitachi Typ: TFO 4 pole motor 0.75kW 200V, 50Hz, 1420rpm 3.5A

Copper Coating Pan

Dual coating pan on a common shaft Control box Opening 575dia. x 850deep Capacity: 175L Usable volume: 850mm W x 850mm deep x 330 mm H (curved shaped) ~ 0.1767 m3 Motor: Hitachi Typ: TFO 4 pole motor 1.5kW 200V, 50Hz, 1430rpm 6.5A 200V, 60hz, 1720 rpm, 6A 220, 60Hz, 1730 rpm, 5.8A

Copper Coating Pan

Stainless steel base with rubber feet Opening 410dia. x 410deep Max internal dia: 800mm Capacity: 50L Usable volume: 750mm W x 410mm deep x 250mm H (curved shaped) ~ 0.0556 m3 Driven by timing belt Motor: 415V, 50Hz, 2.4A, 1.1kW, 1400rpm Compliance plate details: Make: SBB ENG Gas: Natural gas Model: IRI S/N: 516 Total gas in: 50 Max gas pressure: 6 kPa Regulator air pressure:

Copper Coating Pan

Stainless steel base with rubber feet Opening 410dia. x 410deep Max internal dia: 800mm Capacity: 50L Usable volume: 750mm W x 410mm deep x 250mm H (curved shaped) ~ 0.0556 m3 Driven by timing belt Motor: 415V, 50Hz, 2.4A, 1.1kW, 1400rpm Compliance plate details: Make: SBB ENG Gas: Natural gas Model: IRI S/N: 516 Total gas in: 50 Max gas pressure: 6 kPa Regulator air pressure:

DCS Tempermeter TM-10

Main Features and Advantages: - Light and strong design. We are using an industrial enclosure and special forced plugs from German suppliers. - Easy start of measure. After placing the chocolate sample - just push a button. - High resolution colour sensor display of operator with real time indication. - Operator can adjust any parameters from display of Tempermeter and store it for different

Hata Coating Pan HC-120

HATA HC-120 SUS 304 Coating Pan Dimensions: 950 mm ID x 850 mm D Opening: 500 mm

Hata Copper Coating Pan HC-120

HATA HC-120 Copper Coating Pan Dimensions: 950 mm ID x 620 mm D Opening: 620 mm

Hata Coating Pan with lid HC-120

HATA HC-120 SUS 304 Coating Pan with lid Dimensions: 950 mm ID x 850 mm D Opening: 500 mm

Shanghai Candy Machine Co Cooling Tunnel (5 pass) CT

This 5 pass SHANGHAI CANDY MACHINE CO Cooling Tunnel was used in a confectionery plant. Capacity: 300 kg/hr (product and size dependent) Belt width: 200mm Length and belt width of each pass (5) 6000mm x 200mm W: Electrics: 3 phase, 415V,50Hz. Installed power 11kW Overall Dimensions: 6500mm L x 1000mm W x 1750mm H

Seven Castle Twin Linked Bar Cutter (on tray) SC-680

Specifications Product Size: Thickness 10-25 mm Size of Tray: 520mm wide and 520 mm long Size of Knife: 520 Long and Diameter 133mm (slitting knives) Power: 3-Phase, 2 HP, 240/415V 50Hz Overall Dimension: 2,500mm long x 1250 mm wide x 900mm high Applications - Good for nut/cereal bars with honey and syrup, nougats, walnut pastilles and all kinds of sweets. - The cutter used is special

IOPAK Stainless Steel Coating Drum DRUM1800-770

<Specifications> Drum Dimensions: 1,800 L x 770 Diameter mm (Entrance Diameter: 650 mm) Drum Height: 1,150 mm (Floor to Centre) Max Capacity: 7,200 Ltr/Hr (Product Dependent) Material Constructions: SUS304 Motor: 0.37 kW Power Supply: 1-Phase, 240V, 50Hz Included Accessories: - VSD - Perforated End Section - Dust Extraction Hood These are made to order.

IOPAK 5,950Ltr Chocolate Tank with Stirrer CHOCTANK-5950

<Specifications> Total Volume: 5,950 Ltr Jacket & Insulation: 50mm Thick Reducer: 415V, 5.5kW, 12rpm Material Construction: SUS304 Included Accessories: - Half-Moon Manhole - CIP 38mm - Breather 160mm - Inlet 2" - 2 x 3" Ball Valves for Outlet

IOPAK Chocolate Self Heated Melting System CHOCMELT

Scope of Supply: - 1,000Ltr self heated Chocolate Tank with Flat Top, Sloping Base, Side Discharge (3" Non-Jacketed Manual Ball Valve), 1.5kW Motor (12 amps), 12 rpm - 250L Electrically Heated Water Tank - Grunfos Pump to Circulate Hot Water - Control Box to Control Water Circulation - Main Product Temperature Limited to Max 80 Degrees C - Main Agitator will Not Run below Min Temp of 20 Degr

NUOVAFIMA IMBALLAGGI Chocolate Wrapper with product aligner/Infeed W012/B

Bunch wrapper for chocolates including Product Aligner/Feeder. The machines are designed to work in tandem. Rated at up to 315 cycles per minute without product (Nominal only - size and product dependent - test first) Set up for 20 x 10 x 30 at present This machine is designed to wrap with a single material. YOM 1997

IOPAK 500Ltr Chocolate Tank (Stainless Steel, Jacketed & Insulated) CHOCTANK-500

NEW IOPAK Choctank - jacketed, insulated and comes with slow agitator Specifications Total Capacity: 667 Ltr Working Capacity: 500 Ltr Inner Diameter: 1,120 mm Outer Diameter: 1,226 mm Insulation: 50 mm Thick Power: Reducer - 415V, 2.2kW, 12rpm Material Thickness: 3 mm Material Construction: SUS304 Please note this tank does not come with electrics, and Category 4 safety interlocks n

IOPAK Chocolate Coating Pan (Stainless Steel) COATPAN

Specifications: Diameter: 1,250 mm Approx depth is 740mm 1.5kW Mechanical Variable Speed 3 Phase, 415 Volts Lead time is generally 3 months from date of deposit.

IOPAK 2,000Ltr Chocolate Tank (Stainless Steel) CHOCTANK-2000

Brand new IOPAK Chocolate Tank. This one is 2,000L but just tell us the size of your preference? Specifications: Overall Capacity: 2,390 Ltr Working Capacity: 2,000 Ltr Inner Diameter: 1,480 mm Outer Diameter: 1,500 mm Internal Depth: 1,290 mm Overall Height: 2,576 mm Reducer: 415V, 4kW, 12 rpm/min Material Constructions: SUS304 Access Manhole: 800mm x 430mm Semi-Circle Product Disc

IOPAK Jacketed Chocolate Pump (1'') ZB3A-6-0.75-J

Capacity- 650 - 1600/hr 1' in and out Jacketed. 100 revolutions= 6L Motor size: ABB, 0.75kW. Self - Priming. Superior gear box design. Low sound level. Easily dismantled. Materials - Pump head, covers and shaft of AISI 316 SS. Electrical 3 Phase 415 Volts

IOPAK Jacketed Chocolate Pump (3') ZB3A-100-7.5-J

This BRAND NEW rotary lobe 3" (75mm) hot water jacketed pump comes with an ABB motor. The pump is of excellent quality and very keenly priced. The specification of the pump is as follows: Contact material SUS316 [Lobe Pump] Flow: 6000 - 12,000 litres / hr. (nominal - subject to product and head) Pressure: 5 Bar Power: 7.5kW Speed: 500RPM Stainless Steel rotors [ABB Motor - IEC34-1] Size: 7.0kW Vo

Arcan Chocolate Enrober/Coating Machine UKP-1000 Custom

* Bandwidth is 1050mm. * Stainless steel wire mesh band is supplied by Maertens Germany. * All parts of the machine are manufactured from stainless steel. * The coating machine is equipped with a PLC. You can adjust all settings for the coating machine and cooling tunnel by touchscreen. * The coating machine synchrones with the entire line. * The machine is equipped with a chocolate pump for curta

Arcan Confectionery Bar Forming Line BFL-400

Bar Dimensions W x D x H (Center Product) Mini Bar: 21 x 57 x 12mm Maxi Bar: 24 x 97 x 14mm Bar Dimensions W x D x H (Chocolate Coated Product) Mini Bar:25 x 60 x 14mm. Maxi Bar: 28 x 100 x 16mm 1st Layer Mini Bar:9 mm nougat(0,85 kg/L) Maxi Bar:11mm nougat (0,85 kg/L) 2nd Layer Mini Bar:(3mm caramel(1,4 kg/L) Maxi Bar:3mm caramel (1,4 kg/L) Slab Width Mini Bar:380mm Maxi Bar

MORINAGA Porcupining or Spiking Machine for Truffle Balls

You are a chocolate perfectionist wanting to offer the discerning public the perfect truffle! PPN has sourced a rare beast for you - a chocolate truffle spiking or porcupining machine. This machine delivers a polydimensional spiked confection, with a hand made appearance. Electrical: 415 V, 3 phase, 10 A, 5 pin plug. Variable speed with temp control

IOPAK Jacketed Chocolate Pump (2 inch) ZB3A-52-5.5-J

This BRAND NEW 2" jacketed rotary lobe pump comes with an ABB motor. The specification of the pump is as follows: Contact material SUS316 [Lobe Pump] Flow: 5600 - 11,000 litres / hr. 52L/100r(subject to product and head) Pressure: 4 Bar Power: 5.5kW Speed: 368RPM Stainless Steel rotors [ABB Motor - IEC34-1] Size: 5.5kW Voltage: 415V Amp: 12.1A Frequency: 50Hz Other: IP55 Rated, 52.

A.M.P Rose Confectionery Cut & Wrap Machine

This machine has been previously used in the confectionary (chewing gum) industry to cut and wrap foil wraps over small single portions. The roller width is 38mm and the central aluminium wheels 232mm. The individual pockets are 18 x 14 x 10 mm (l x w x h)
